Overview
Mightex’s PolyEcho intelligent control module is built for multi-threaded, event-driven experiments, such as those in freely-behaving neuroscience animal research, where experimental events occur unpredictably. The PolyEcho enables precise coordination of devices in response to random, user-defined trigger events, ensuring reliable stimulation, data collection, and timestamping for downstream analysis.
- Supports asynchronous, event-driven control where trigger events occur in non-sequential, random patterns
- Allows each trigger signal to initiate specific, user-programmed responses (e.g., activating cameras, light sources, or other devices)
- Coordinates multiple hardware and software trigger inputs for synchronized device control
- Synchronizes signal/stimulation output and data acquisition across all connected devices
- Uses a shared internal clock to generate consistent, high-resolution timestamps for all events and actions
- Ensures accurate timing information for post-acquisition analysis and correlation of neural activity with stimuli

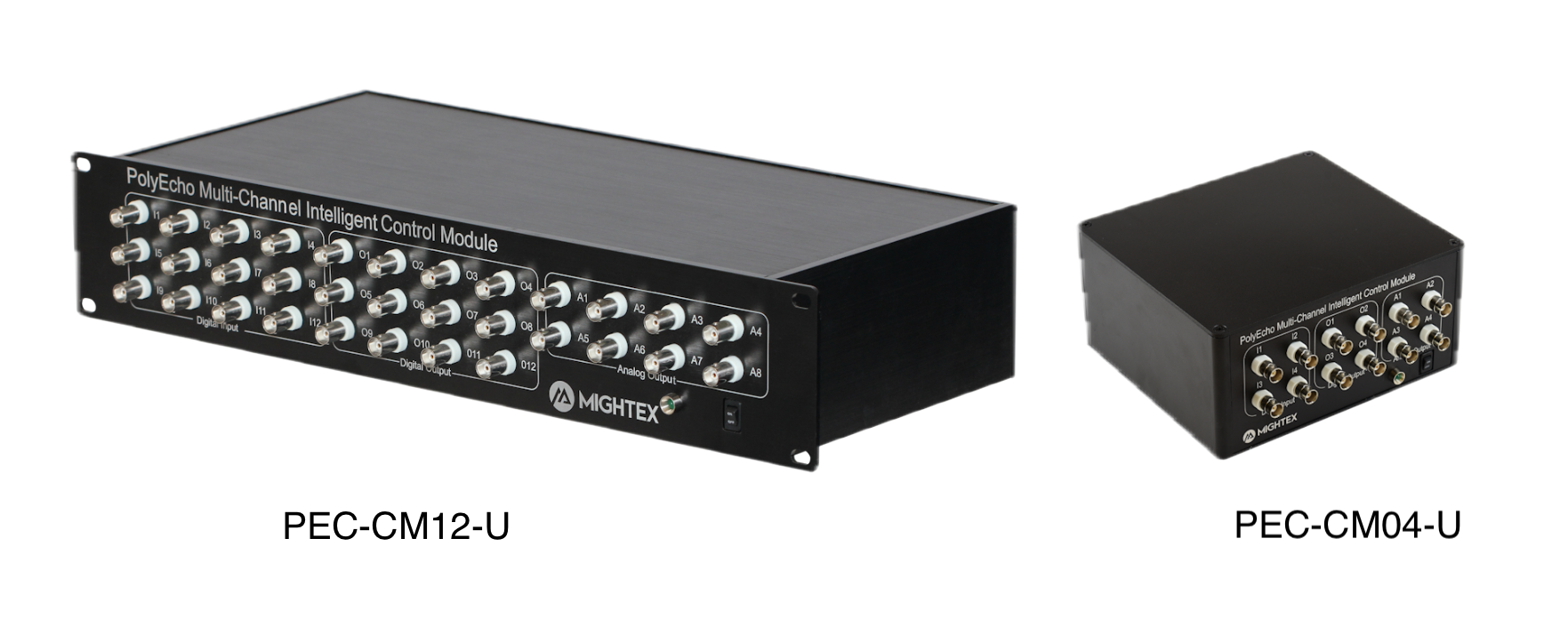

4-channel PolyEcho (PEC-CM04-U)

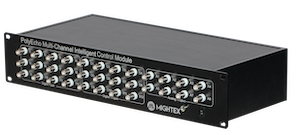

12-channel PolyEcho (PEC-CM12-U)
PolyEcho Intelligent Control Module
- Two models:
(1) 4 channels (PEC-CM04-U) with 4 TTL inputs, 4 TTL outputs and 4 analog outputs;(2) 12 channels (PEC-CM12-U) with 12 TTL inputs, 12 TTL outputs and 8 analog outputs - Each TTL input can be programmed to control any combination of TTL & analog outputs
- Unified time-stamping for all input and output ports
- Port configuration software programmable by user
- Control parameters uploadable from PC to PolyEcho for real-time operation
- Trigger delay <20μs
- Support both hardware/TTL and software triggers
PolyEcho Intelligent Control Module
- Two models: (1) PEC-CM04-U, with 4 TTL inputs, 4 TTL outputs and 4 analog outputs; (2) PEC-CM12-U, with 12 TTL inputs, 12 TTL outputs and 8 analog outputs
- Each TTL input can be programmed to control any combination of TTL & analog outputs
- Unified time-stamping for all input and output ports
- Port configuration software programmable by user
- Control parameters uploadable from PC to PolyEcho for real-time operation
- Trigger delay <20μs
- Support both hardware/TTL and software triggers
PolyEcho Intelligent Control Module
- Two models: (1) PEC-CM04-U, with 4 TTL inputs, 4 TTL outputs and 4 analog outputs; (2) PEC-CM12-U, with 12 TTL inputs, 12 TTL outputs and 8 analog outputs
- Each TTL input can be programmed to control any combination of TTL & analog outputs
- Unified time-stamping for all input and output ports
- Port configuration software programmable by user
- Control parameters uploadable from PC to PolyEcho for real-time operation
- Trigger delay <20μs
- Support both hardware/TTL and software triggers

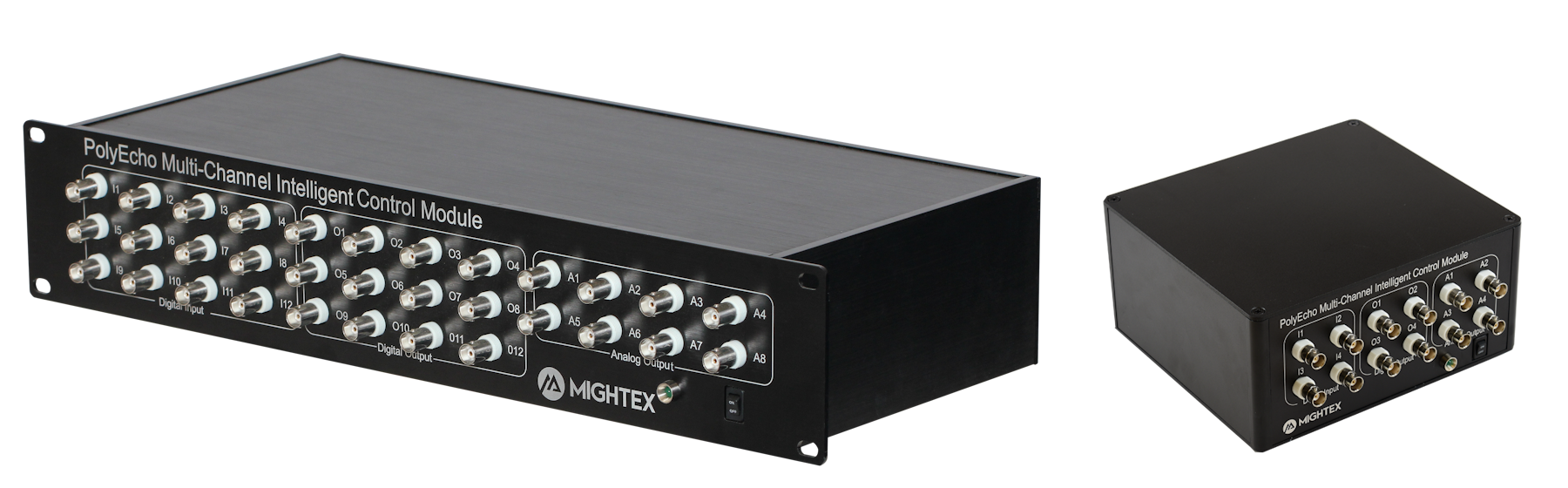

PEC-CM12-U PEC-CM04-U
Models
PEC-CM12-U PEC-CM04-U
* PEC-CM12-U: 12 TTL inputs, 12 TTL outputs and 8 analog outputs
* PEC-CM04-U: 4 TTL inputs, 4 TTL outputs and 4 analog outputs

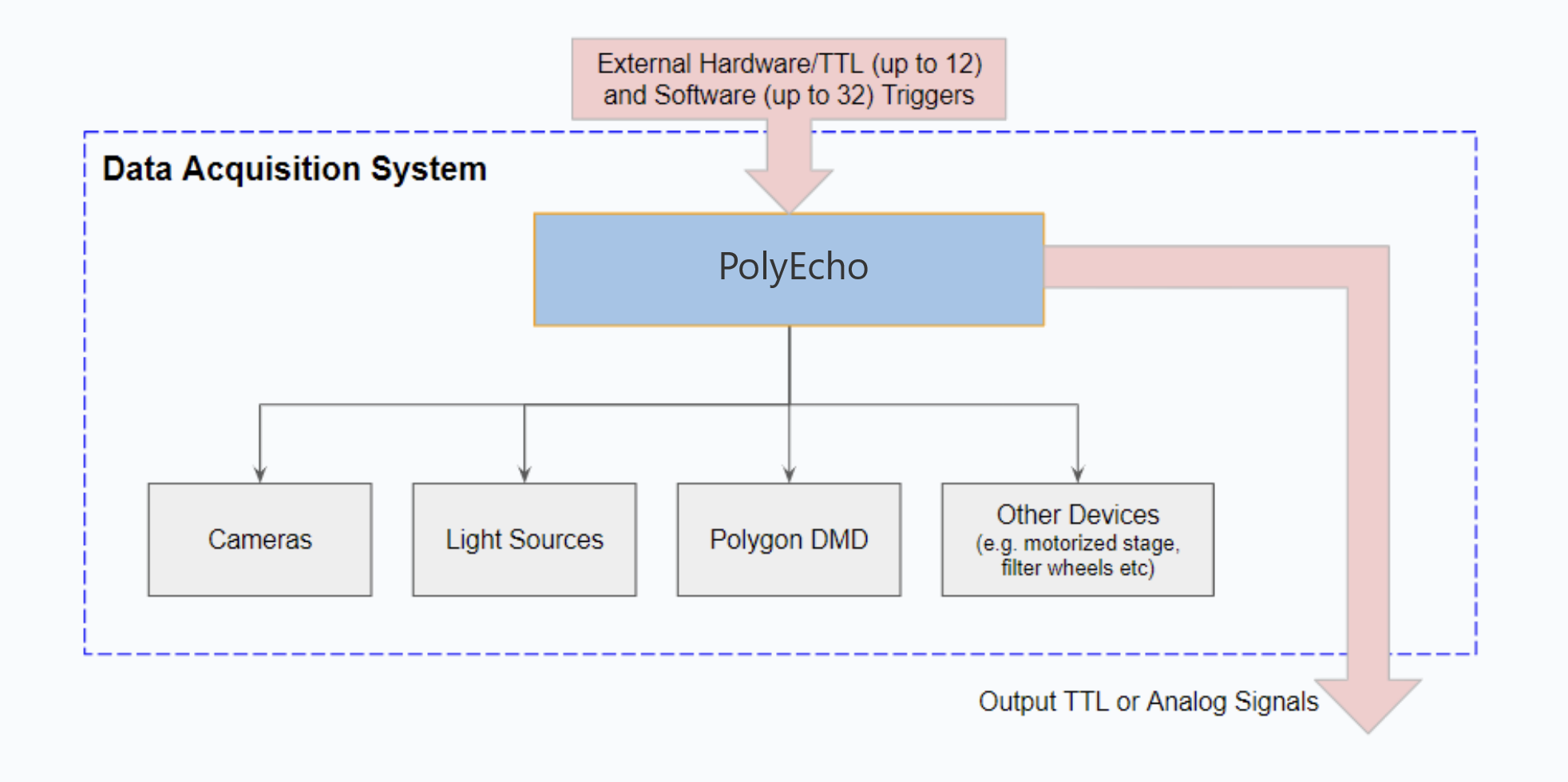

This schematic illustrates a typical data acquisition system which may include a wide range of equipment. The system may receive multiple hardware/TTL and software triggers, in response to which, it will activate data acquisition as per the trigger-specific workflow defined by the researcher through Mightex’s PolyScan software. At the heart of the system is the PolyEcho Multi-Channel Intelligent Control Module, which can handle up to 12 hardware/TTL triggers, and up to 32 software triggers, while also synchronizing and controlling all hardware devices in the system. In addition, PolyEcho is also able to send out additional TTL and analog signals to control other equipment outside the Data Acquisition System. Last but not least, all incoming trigger events and all control signals sent to the devices are logged with precise and unified timestamps.
Performance Specifications
| Models | 12 channels (PEC-CM12-U) | 4 channels (PEC-CM04-U) |
|---|---|---|
| Current Accuracy (mA) | +/-3% | +/-3% |
| Number of Channels | 12x Digital Inputs 12x Digital Outputs 8x Analog Outputs | 4x Digital Inputs 4x Digital Outputs 4x Analog Outputs |
| Power Supply Input Voltage (Vdc) (V) | 24 | 24 |
| Channel Connector Type | BNC | BNC |
| Analog Channel Voltage Resolution (%) | 0.1 | 0.1 |
| Analog Channel Output Voltage Range | 0-5V or 0-10V* | 0-5V or 0-10V* |
| Analog Channel Output Voltage Accuracy (V) | +/-0.5% (or +/-3mV)** | +/-0.5% (or +/-3mV)** |
| Digital and Analog Channel Output Time Resolution (µs) | 20 | 20 |
| Input Trigger Current Requirement (mA) | 2 - 20 | 2 - 20 |
| Dimensions (mm) | 485(L) x 220(W) x 89(H) | 190(L) x 170(W) x 90(H) |
* When forward voltage of LED load is greater than 8V, a 24Vdc input might be used.
** External analog voltage source should have >8mA of current driving capability. The input current should be greater than the combined output current of the two channels.
